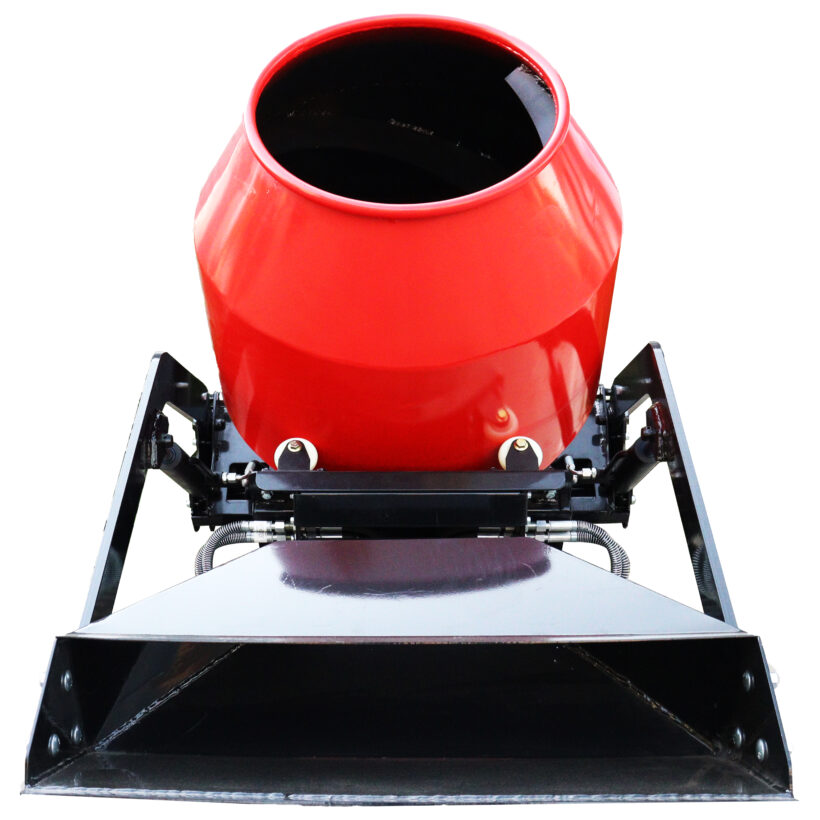

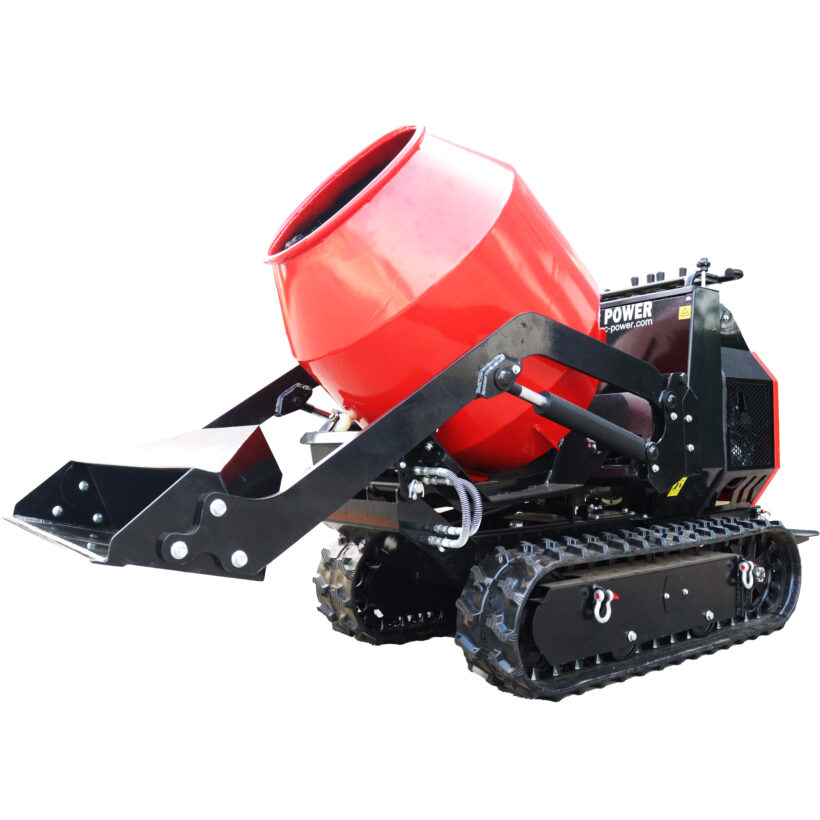

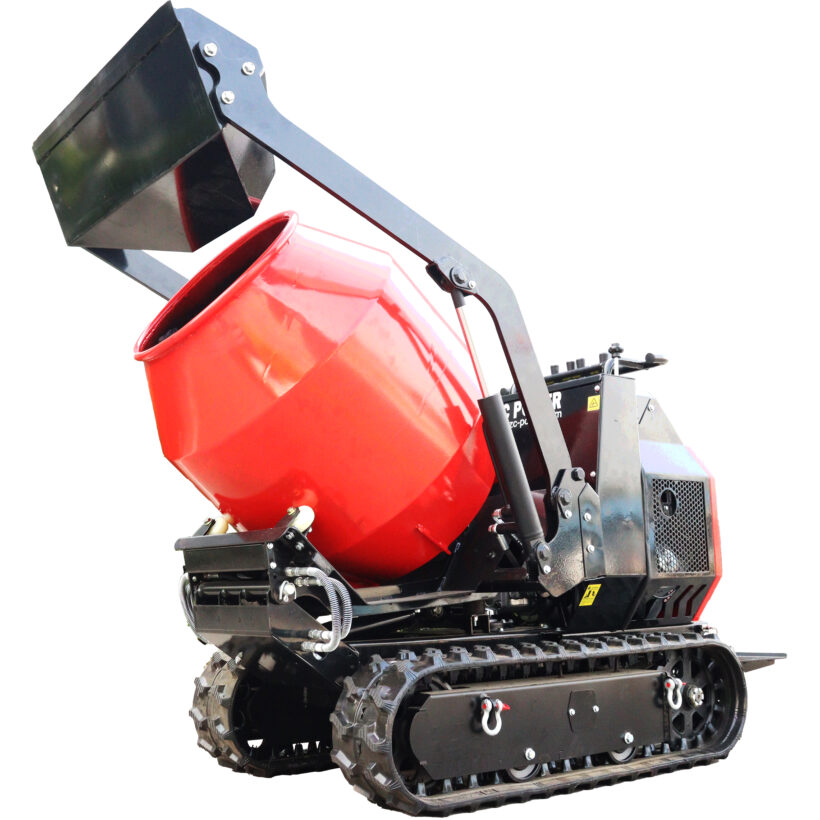

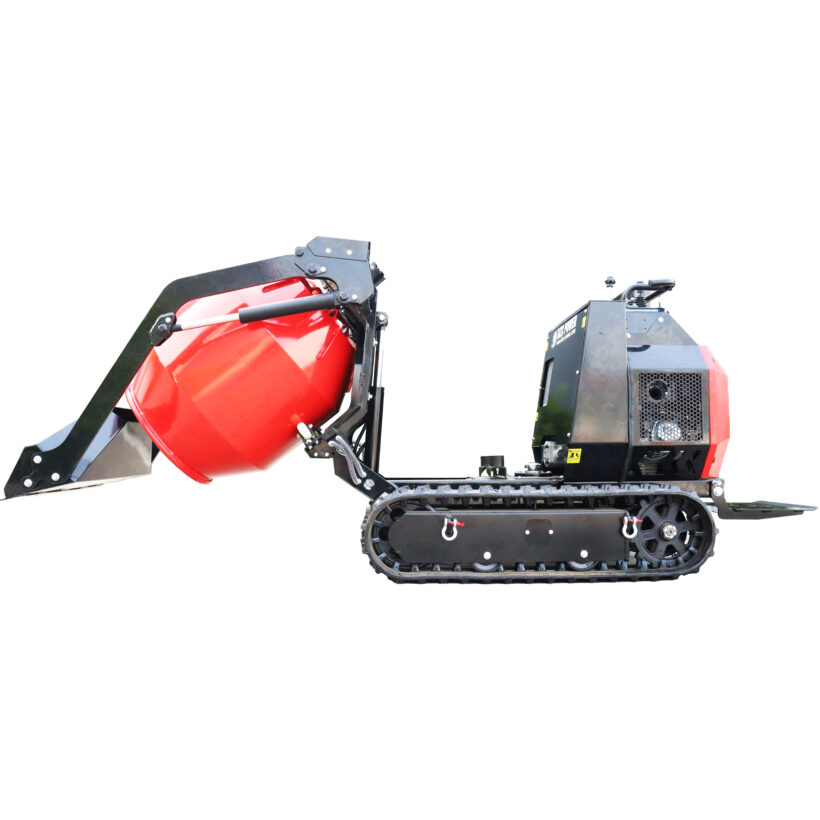

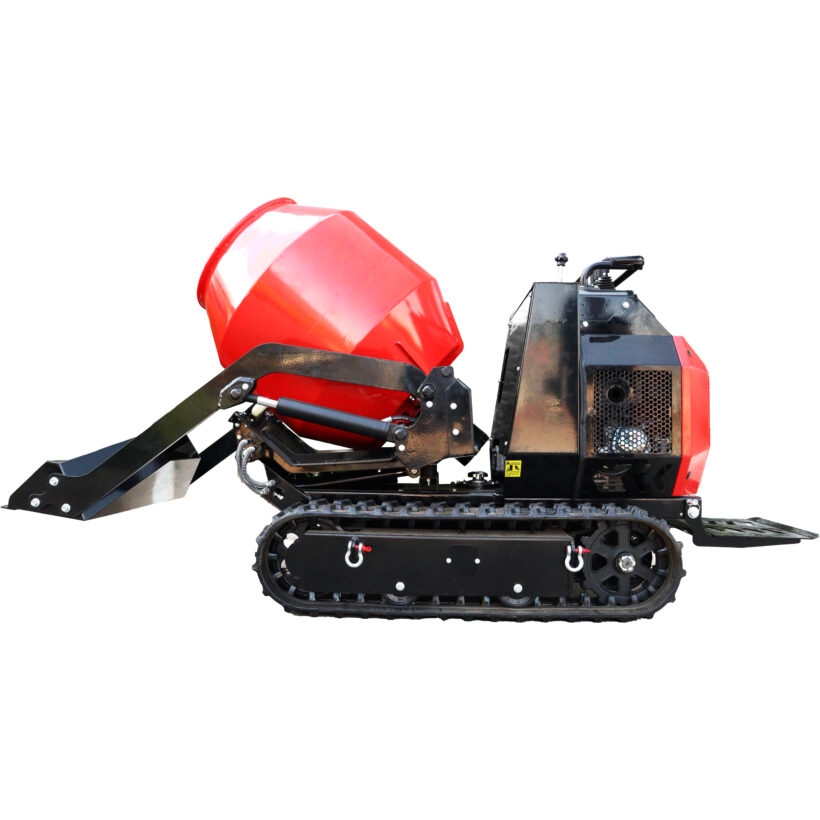

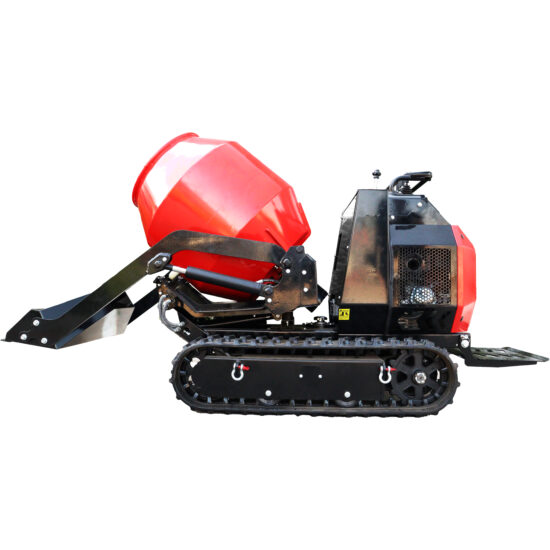

Tracked Concrete Mixer KBM300, 13.5 HP Petrol Engine, Stand-On Skid Steer, Rubber Tracks (KBM300)
The KBM300 tracked concrete mixer is the ideal companion for construction companies, landscapers, and ambitious DIYers. With its powerful petrol engine, robust tracked undercarriage, and large drum volume, the mixer is perfect for use on rough terrain, in narrow passages, and on hard-to-reach construction sites. Thanks to the 360° drum rotation and the hydraulic system, concrete mixing and transport can be done quickly, efficiently, and independently of location.
Technical Data
Engine power: 420cc petrol engine, 13.5 HP (9.3 kW)
Start system: Electric start
Drum volume: 300 dm³
Track width: 776 mm
Travel speed: 0–3 km/h
Ground clearance: 100 mm
Hydraulic flow rate: 14 l/min
Hydraulic tank capacity: approx. 13 liters
Climbing ability: max. 25°
Net weight: approx. 530 kg (without attachments)
Shipping weight: approx. 600 kg
Machine dimensions (L×W×H): 1755 × 880 × 1640 mm
Shipping dimensions (L×W×H): approx. 2200 × 900 × 1395 mm
Standard Equipment
Robust rubber track undercarriage for maximum traction
Hydraulic drum tilt for easy discharge
Large concrete drum with 300 l capacity
Electric start system for convenient ignition
Powder-coated frame with protective covers
Safety handle and emergency stop switch
User-friendly control panel
Delivery Information
Delivery is made via freight forwarding on a pallet. Please ensure that access is possible for a 7.5-ton truck. The concrete mixer is delivered pre-assembled. Final assembly and initial filling with operating fluids must be carried out by the customer. Our customer service team is happy to assist you with commissioning.
