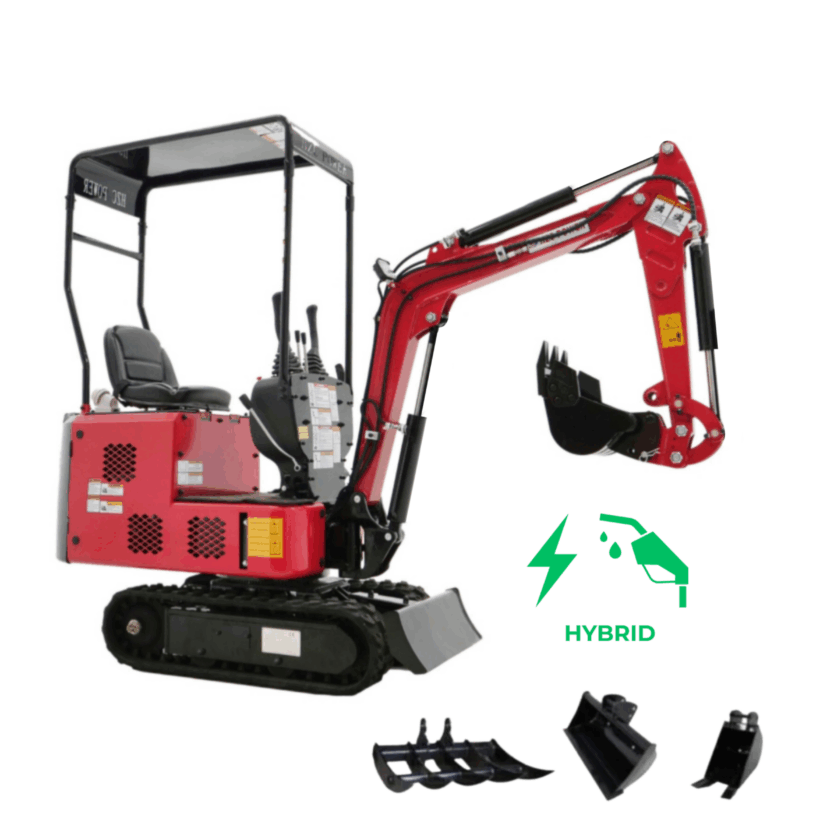

Hybrid mini excavator with electric and petrol engine, tracked drive, adjustable undercarriage & swivel boom arm (EBKB810K)
The HZC Power EBKB810K is a compact hybrid mini excavator equipped with a 10 hp petrol engine as well as an electric motor. This combination allows for flexible operation – either using a conventional petrol drive or a zero-emission electric drive (electric operation via power cable). This makes the EBKB810K perfect for landscaping and gardening, smaller construction projects, and work in enclosed spaces or environmentally sensitive areas.
The robust tracked undercarriage ensures stability on various surfaces, while the digging depth of 1650 mm and ground reach of 1300 mm enable efficient work in compact environments. The hydraulically swiveling boom arm (Knickmatik 120°) allows for precise digging near walls or in tight areas, while the adjustable dozer blade adds stability and can be used for surface leveling.
The EBKB810K is the ideal choice for anyone looking for a powerful, versatile, and eco-friendly mini excavator that can operate on both petrol and electricity.
Technical Data
Manufacturer: HZC Power GmbH
Model: EBKB810K
Engine
- Engine 1: Jiao petrol engine, 10 hp
- Engine 2: Electric motor, 400V, 2.2 kW
- Cooling: Hydraulic oil cooler
- Max. torque: 35 Nm
- Max. speed: 2880 rpm
- Breakout force: 5.5 kN
- Fuel tank capacity: 6.5 liters
- Electric starter: 12 volts
Undercarriage & Hydraulics
- Maximum climbing ability: 25°
- Maximum speed: 2 km/h
- Ground pressure: 0.35 kgf/cm²
- Track dimensions: 1090 x 180 x 320 mm (LxWxH)
- Oil tank capacity: 6.5 liters (HLP46)
Swing & Working Range
- Swing radius: 360°
- Swing speed: 13 rpm
- Hydraulic pump: Dual gear pump
- Working pressure: 160 bar
- Maximum pressure: 210 bar
- Hydraulic flow: 30 liters per minute
- Digging depth: 1650 mm
- Dump height: 2140 mm
- Ground reach: 1300 mm
Dimensions & Weight
- Dimensions: 2200 x (680–880) x 2200 mm
- Product weight: 810 kg
Special Features
- Knickmatik (120°) for flexible work
- Hydraulically adjustable undercarriage for greater stability
Included Accessories:
- Buckets: 20 cm, 37 cm and 60 cm
- Rake for versatile applications
NOTE: Please only use the Smart Charger (SLM10) from HZC Power to charge the starter battery. We are not liable for any damage caused by third-party devices.
Standard Equipment
The HZC Power mini excavator EBKB810K features comprehensive standard equipment, making it a powerful and versatile tool:
Hybrid drive (petrol & electric)
- The Jiao petrol engine with 10 hp delivers strong performance.
- The 400V electric motor with 2.2 kW enables eco-friendly and emission-free operation.
Knickmatik (120°)
- The swiveling boom allows precise operation even in tight spaces.
- Swing range of 60° left and 60° right for maximum flexibility.
Hydraulically adjustable undercarriage
- The track width can be adjusted between 680 mm and 880 mm.
- Increased stability on uneven terrain.
Powerful hydraulics
- Dual gear pump ensures smooth and reliable oil supply.
- Working pressure of 160 bar and hydraulic flow of 30 l/min allow for efficient operation.
360° swing radius
- The upper carriage is 360° rotatable, offering excellent maneuverability and precise control.
Electric starter (12V)
- Easy and convenient engine start.
Stable tracked undercarriage
- Provides solid grip on various surfaces and eases use on construction sites.
Ergonomic controls
- Thoughtfully placed control elements for comfortable and efficient operation.
Standard Accessories:
- Three buckets: 20 cm, 37 cm and 60 cm
- Rake – ideal for working with loose materials
Scope of Delivery
The HZC Power mini excavator EBKB810K comes with a complete delivery package and is ready for immediate use after just a few simple steps:
- EBKB810K hybrid mini excavator (pre-assembled)
- Three digging buckets (20 cm, 37 cm and 60 cm)
- Rake – ideal for grabbing and moving materials
- Hydraulic oil (HLP46, 6.5 liters) – pre-filled
- User manual with essential operation and maintenance information
Delivery Notes
The EBKB810K is delivered fully assembled for safe transport and easy handling upon delivery. Delivery is made via freight carrier.
Please note the following:
- Delivery: Delivery is curbside. The excavator will be unloaded using the truck’s liftgate, so no additional equipment (like a forklift) is required.
- Commissioning: Before first use, all functions should be checked according to the manual and the battery fully charged.
The mini excavator is delivered fully assembled and ready to operate. All fluids and operating materials are pre-filled.
Further information on delivery or setup is available on request.
